8 Poles Dielectric Strength 500VAC Brushless E Motor

Brand Name : OEM

Certification : CE/ISO/ROHS

Place of Origin : China

MOQ : Negotiable

Payment Terms : L/C, T/T, Western Union, Paypal

Delivery Time : 15-25days

Packaging Details : with export carton

Price : Negotiable

Supply Ability : 25000pc/month

Winding type : Delta

Hall effect angle : 120 Deg. Electrical angle

Radial play : 0.025mm/460g

End play : 0.025mm/400g

Max. radial force : 220N @ 20mm from the flange

Max. axial force : 60N

Insulation class : B

Insulation resistance : 100MΩ min., 500VDC

Contact Now

8 Poles Dielectric Strength 500VAC Brushless E Motor

General specification

Winding type	Delta
Hall effect angle	120 Deg. Electrical angle
Radial play	0.025mm/460g
End play	0.025mm/400g
Max. radial force	220N @ 20mm from the flange
Max. axial force	60N
Insulation class	B
Dielectric strength	500VAC for one minute
Insulation resistance	100MΩ min., 500VDC

Performance Data

Model	Units	60ZW3S 72A10	60ZW3S 72A30	60ZW3S 92A10	60ZW3S 92A30	60ZW3S 114A10	60ZW3S 114A30	60ZW3S 134A10	60ZW3S 134A30
Number of poles		8
Number of phase		3
Rated voltage	VDC	24
Rated speed	RPM	1000	3000	1000	3000	1000	3000	1000	3000
Continuous stall torque	N.m	0.38	0.38	0.78	0.78	1.2	1.2	1.56	1.56
Rated torque	N.m	0.32	0.32	0.65	0.65	1	1	1.3	1.3
Rated power	W	33.5	100	68	204	105	314	136	408
Peak torque	N.m	0.96	0.96	1.95	1.95	3	3	3.9	3.9
Peak current	A	6	17.9	12.2	36.5	18.8	56	24.3	73
Torque constant	Nm/A	0.16	0.054	0.16	0.054	0.16	0.054	0.16	0.054
Back E.M.F	V/KRPM	17.14	6	17.14	6	17.14	6	17.14	6
Rotor inertia	g.c㎡	70	70	140	140	210	210	280	280
Body length	mm	72	72	92	92	114	114	134	134
Voltage range	VDC	12~310
Speed Range	RPM	1000~3000
Weight	Kg	0.55	0.55	0.95	0.95	1.35	1.35	1.75	1.75

Customization Options

Custom Shaft & Mounting Details:

All motors can be supplied on request with single or double ended shafts, shorter and longer shafts, as well as many other modifications.Custom Flanges and other mounting details can also be considered.

Encoders:

All motors can be supplied on request with a variety of encoder options and resolutions.

Brakes:

All motors can be supplied with electro-magnetic parking brake, with or without hand release.

Cable Harness:

All motors can be supplied on request with custom cable harness and/or special lead-wires with or without connectors

Application:

solar project
automobile
communication
inkjet printer
pump
medical blower
security

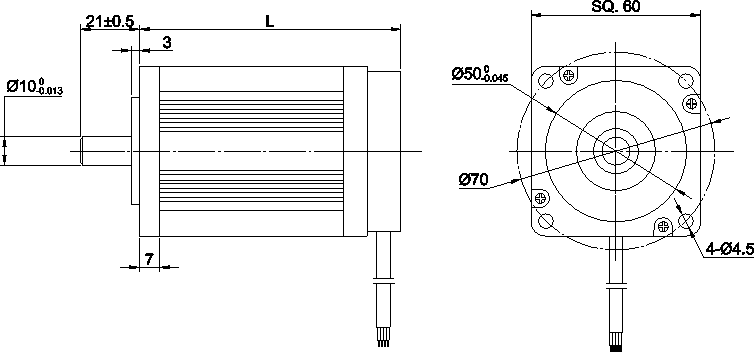

Dimensions in mm
