10 Inch Water Cooled Brushless DC Motor

Product Categories

Beijing Silk Road Enterprise Management Services Co.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : China

Brand Name : OEM

Certification : CE/ISO/ROHS

Supply Ability : 25000pc/month

Packaging Details : with export carton

MOQ : Negotiable

Price : Negotiable

Delivery Time : 15-25days

Payment Terms : L/C, T/T, Western Union, Paypal

Voltage(V) : 60V

Output Power : 500W

Usage : Electric Motorcycle

Torque : 50-200N.m

Construction : Permanent Magnet

Protect Feature : Waterproof

Speed(RPM) : 450-500

Axle Configuration : Double

Magnet Height : 27mm

Waterproof Grade : IP54

Contact Now

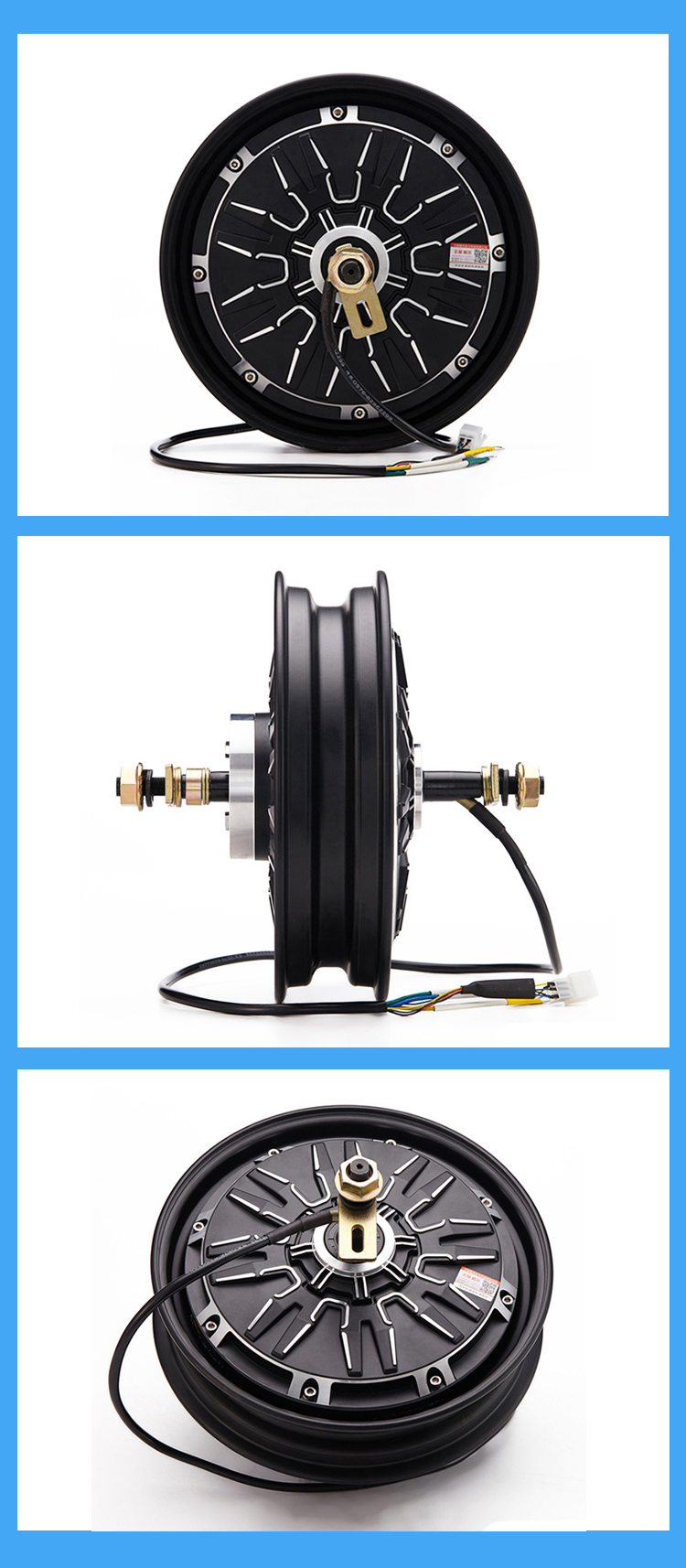

10 Inch Water Cooled Brushless DC Motor

Specification:

Motor Type	Brushless Direct Current Motor(BLDC Motor)
Axle Configuration	Double
Wheel Rim	10 inch
Rated Speed	40km/h
Voltage	60V
Magnet Height	27mm
RPM	450-500
Brake System	Drum Brake/Disc Brake
Hall Sensors	1/2
Hall Sensor Phasing	120°
Number of motor phases	3
Max Efficiency	93%
Rated Out Power	500w
Number of Pole Pairs	26
Cross Section of Phase Wire	2.5 square
Waterproof Grade	IP54
Color	Black/white etc.
Package	Carton

10 Inch Water Cooled Brushless DC Motor

Notice:

Motor could work 120 ℃ in half an hour without damage.

Suggestion (Setting of Controller)

When it's 130 ℃ inside of motor (in 30s), the current should be limited 50%.

When it's 150 ℃, the controller shut down. When it drop down to 110℃, the controller work again.

Product Tags:

IP54 Water Cooled Brushless DC Motor
